PlayCanvas Matchmaking example: Part 02 - Advanced

Learn how to integrate VIVERSE Play SDK Matchmaking into your standalone PlayCanvas project using async state flow and PlayCanvas UI system.

About

Welcome to Part 02 of the VIVERSE Play SDK Matchmaking tutorial for PlayCanvas! In this chapter we will cover multiple advanced topics:

Explore the concept of Application State and why it might be useful
Refactor our application to incorporate Async State Flow architecture
Implement UI system using built-in PlayCanvas UI and its components
Learn how to reference UI elements in our code using Script Attributes

Prerequisites

This tutorial assumes you've completed Part 01 and already familiar with the basics of VIVERSE Play SDK / Matchmaking functionality. Please feel free to revisit those if you need a quick recap!

In the second part, we'll focus on adding more juice to our application, exploring architectural changes and integrating the UI system. You can follow this tutorial by forking a dedicated PlayCanvas Project with all the code and assets included.

Step 1: App architecture and Async State Flow

In the previous tutorial, we devised 4 essential methods to work with our Matchmaking Client — initClient, createRoom, joinRoom and leaveRoom, along with 2 event listeners — onRoomListUpdate and onRoomActorChange — to receive live updates about existing Rooms and connected Actors. In this chapter, we'll revisit that code once again and reorganize it into something more robust and future-proof.

1.1 Constructing State Flow

First, let's introduce a concept of Application State - a single point in discreet space of all possible configurations that can meaningfully describe our application in any given moment. Application can only be in one State at a time, but it can instantly switch to another State once certain conditions are met.

Let's define 6 distinct States encapsulating the entire scope of our application at different stages:

Init State : initialize Matchmaking client, setup user's Actor, then go to Lobby State
Lobby State : show available Rooms, handle user request to Create or Join the Room
Create State : ask SDK to create the Room, handle response, then go to Room State
Join State : ask SDK to join the Room, handle response, then go to Room State
Room State : show Actors currently in the Room, handle user request to Leave the Room
Leave State : ask SDK to leave the Room, handle response, then back to Lobby State

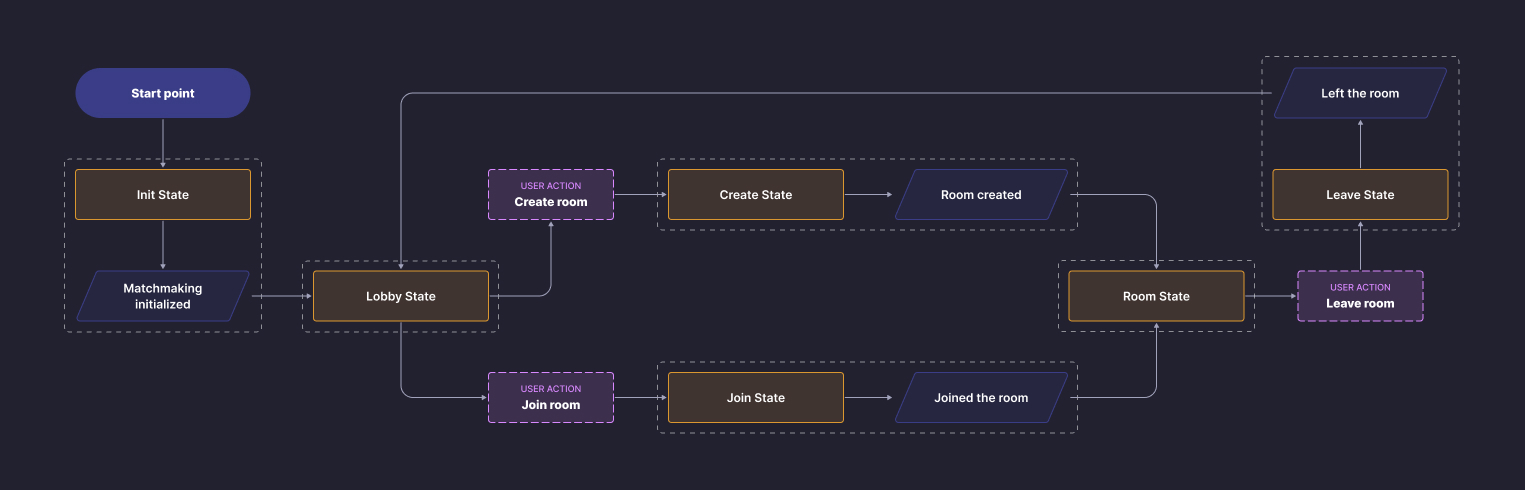

Now, if we organize these States in a closed directional graph, along with conditions triggering State switches — we will end up with something colloquially called State Flow:

1.2 Implementing State Flow

It's time to move our State Flow into implementation! Similar to how we defined 4 essential methods in the previous steps, let's refactor them into 6 new methods — each responsible for functionality of corresponding State:

async gotoInitState () // init Matchmaking, setup Actor --> Lobby State

async gotoLobbyState () // show Create and Join buttons ?.> Create | Join State

async gotoCreateState () // create new Room --> Room State

async gotoJoinState () // join the Room --> Room State

async gotoRoomState () // show connected Actors, Leave button ?.> Leave State

async gotoLeaveState () // leave current Room --> Lobby State

Once we put them all together in a single script — we will end up with something like this:

// @ts-nocheck
import { Script, guid } from 'playcanvas';
const { viverse } = globalThis;

export class Main extends Script
{
    static scriptName = 'Main';

    initialize ()
    {
        this.appId = 'ajhzug2zwb'; // replace with your App ID
        this.username = this.randomUsername ();
        this.playClient = new viverse.Play ();

        // We're exposing these 3 actions to global window object
        // So we can create / join / leave the Room via browser console
        // Without setting up PlayCanvas UI at this point

        window.create = this.gotoCreateState.bind (this);
        window.join = this.gotoJoinState.bind (this);
        window.leave = this.gotoLeaveState.bind (this);

        this.gotoInitState ();
    }

    //----------------------------------------------------------------------------//
    //                                 State Flow                                 //
    //----------------------------------------------------------------------------//
    //          INIT -> LOBBY -> CREATE / JOIN -> ROOM -> LEAVE -> LOBBY          //
    //----------------------------------------------------------------------------//

    async gotoInitState ()
    {
        console.log ('>>> Username:', this.username);
        console.log ('>>> Init matchmaking...');

        // NOTE: Matchmaking Client has only .on() method to subscribe to events
        // We implement our own .off() to make our code look sleeker later on

        this.matchClient = await this.playClient.newMatchmakingClient (this.appId);
        this.matchClient.off = (event) => this.matchClient.eventListeners.delete (event);
        this.matchClient.on ('onConnect', async () =>
        {
            await this.matchClient.setActor
            ({
                name: this.username,
                session_id: guid.create (), // unique random string
                properties: {}
            });

            await this.gotoLobbyState ();
        });
    }

    async gotoLobbyState ()
    {
        console.log ('>>> In the Lobby');

        // Subscribing to Room List updates when entering the Lobby
        this.matchClient.on ('onRoomListUpdate', ((rooms) =>
            console.log (`::: Existing Rooms:`, rooms.map (room => room.id))));

        // Waiting for creating or joining the Room via console
        // >.. await create ()
        // >.. await join ('...')
    }

    async gotoCreateState ()
    {
        console.log ('>>> Creating room...');

        // Unsubscribing from Room List updates when leaving the Lobby
        this.matchClient.off ('onRoomListUpdate');

        let {success} = await this.matchClient.createRoom
        ({
            name: `${this.username}'s Room`, mode: 'pvp',
            minPlayers: 1, maxPlayers: 4, properties: {}
        });

        if (success) await this.gotoRoomState ();
        else await this.gotoLobbyState ();
    }

    async gotoJoinState (id)
    {
        console.log ('>>> Joining room...');

        // Unsubscribing from Room List updates when leaving the Lobby
        this.matchClient.off ('onRoomListUpdate');

        let {success} = await this.matchClient.joinRoom (id);

        if (success) await this.gotoRoomState ();
        else await this.gotoLobbyState ();
    }

    async gotoRoomState ()
    {
        console.log ('>>> In the Room:', this.matchClient.currentRoom.id);

        // Subscribing to Actor List updates when entering the Room
        this.matchClient.on ('onRoomActorChange', ((actors) =>
            console.log (`::: Actors in the Room:`, actors.map (actor => actor.name))));

        // Waiting for leaving the Room via console
        // >.. await leave ()
    }

    async gotoLeaveState ()
    {
        console.log ('>>> Leaving room...');

        // Unsubscribing from Actor List updates when leaving the Room
        this.matchClient.off ('onRoomActorChange');

        await this.matchClient.leaveRoom ();
        await this.gotoLobbyState ();
    }

    //----------------------------------------------------------------------------//
    //                                   Utils                                    //
    //----------------------------------------------------------------------------//

    randomUsername ()
    {
        let username = '';
        username += 'ABCDEFGHIJKLMNOPQRSTUVWXYZ' [Math.floor (Math.random () * 26)];
        for (let i = 0; i < 3; i++)
            username += '0123456789' [Math.floor (Math.random () * 10)];
        return username;
    }
}

Notice a few things here:

As we mentioned in Part 01, Play SDK doesn't require users to be logged in with VIVERSE. So we created a simple method randomUsername () to generate usernames for all our guests
At the same time we're using PlayCanvas built-in guid helper to create unique random strings for our user sessions
Once Matchmaking client is ready and Actor is set up, the Init State transitions to the Lobby State automatically
In the Lobby State we subscribe to onRoomListUpdate and then stay idle until user decides to create or join the Room via our globally exposed methods create () and join ()
Create and Join states are transient and just call corresponding Play SDK methods. Then depending on API response — our app switches either to the Room State (success) or back to the Lobby State (error)
Also notice that we unsubscribe from onRoomListUpdate in Create and Join states since we don't want to receive Room List updates when no longer in the Lobby
While in the Room State, we subscribe to onRoomActorChange and then stay idle until user decides to leave the Room via globally exposed leave () method
And finally, the Leave State is also transient — we unsubscribe from onRoomActorChange and request Play SDK to leave current room. After that we end up in a Lobby again, and then cycle repeats

1.3 Testing in multiple tabs

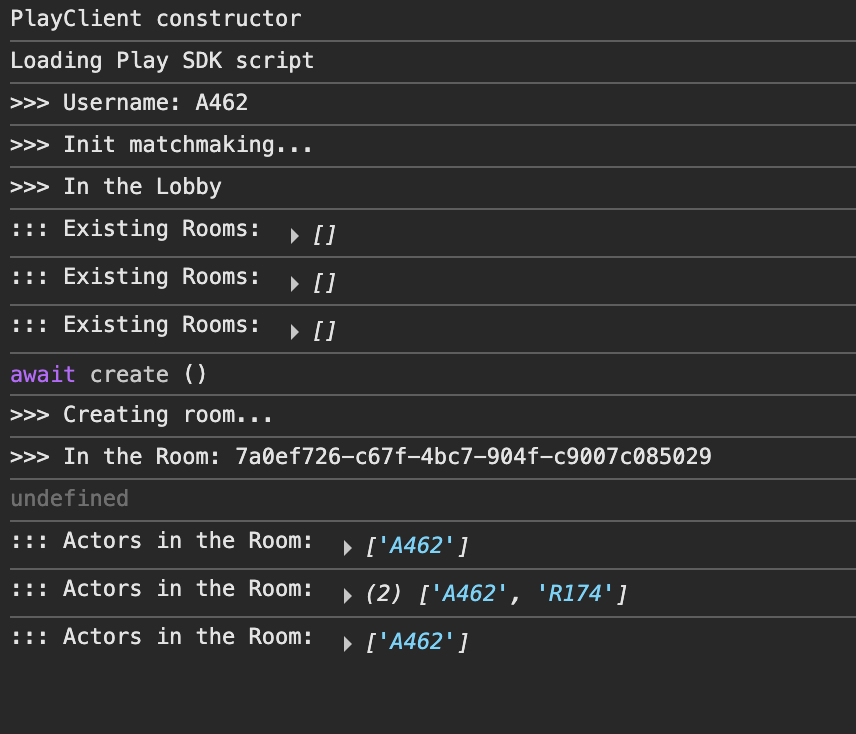

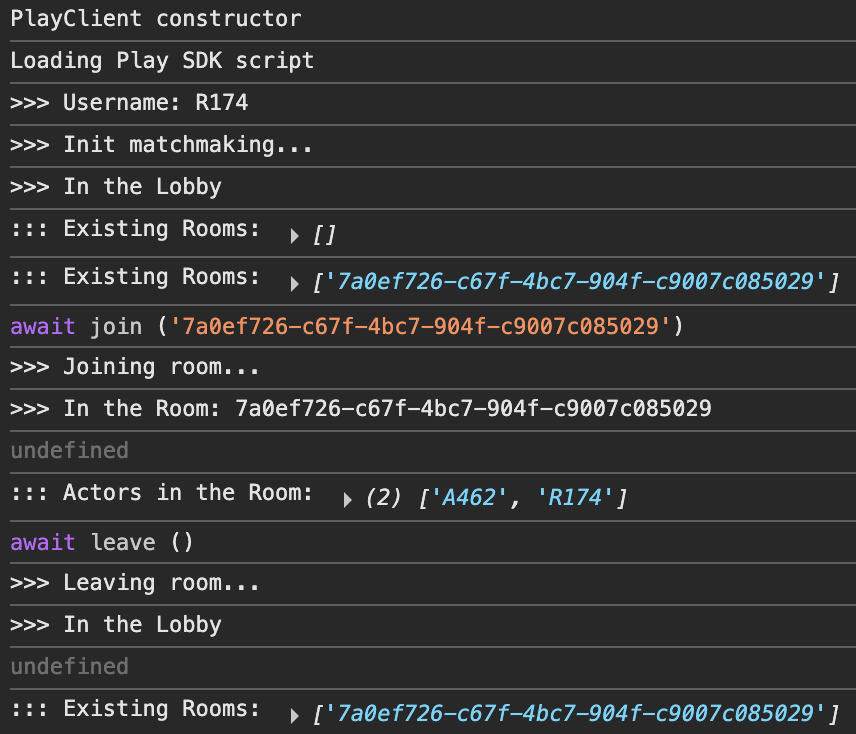

Alright, time to test-drive our new architecture! Just like before, let's launch our PlayCanvas project in two or more separate tabs and use globally exposed create (), join () and leave () methods to trigger corresponding States. If you did everything correctly you would see something like this:

Nice progress so far! In the next chapter, we'll finally move beyond console testing and take a brief look at what PlayCanvas UI system has to offer.

Step 2: PlayCanvas UI integration

One of the strongest advantages of PlayCanvas engine is its visual editor which allows assembling scenes from imported assets in WYSIWYG fashion. And while it's technically possible to preassemble scenes in 3D apps like Blender and then export / import them in GLTF format, this idea falls apart once we try to implement a decent UI of any complexity.

In this chapter, we’ll get to know the PlayCanvas UI system and use it to build a simple, screen-based UI for our project.

From now on we assume you have basic familiarity with PlayCanvas UI system and its essential components like Screen, Element (Group / Image / Text) and Button. If you’d like a quick recap, please read PlayCanvas UI User Manual

2.1 Assembling UI screens

Our application has 6 possible states, but only 2 of them are steady - Lobby and Room. The other 4 states are transient - they always resolve into one of those two. For the purpose of this tutorial we can cover our entire UI functionality with just 3 screens:

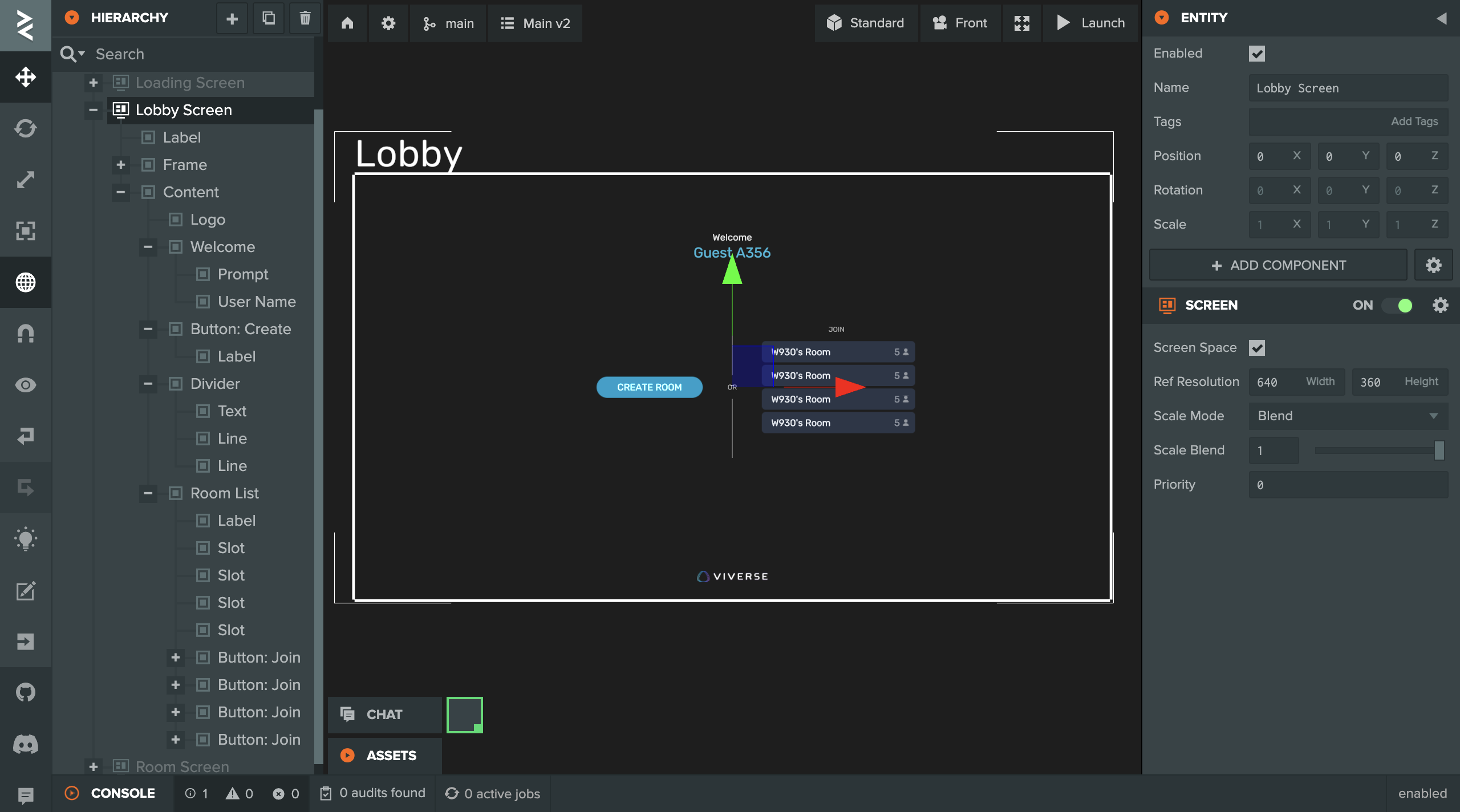

Lobby : display a list of Rooms that user can join, along with Create button

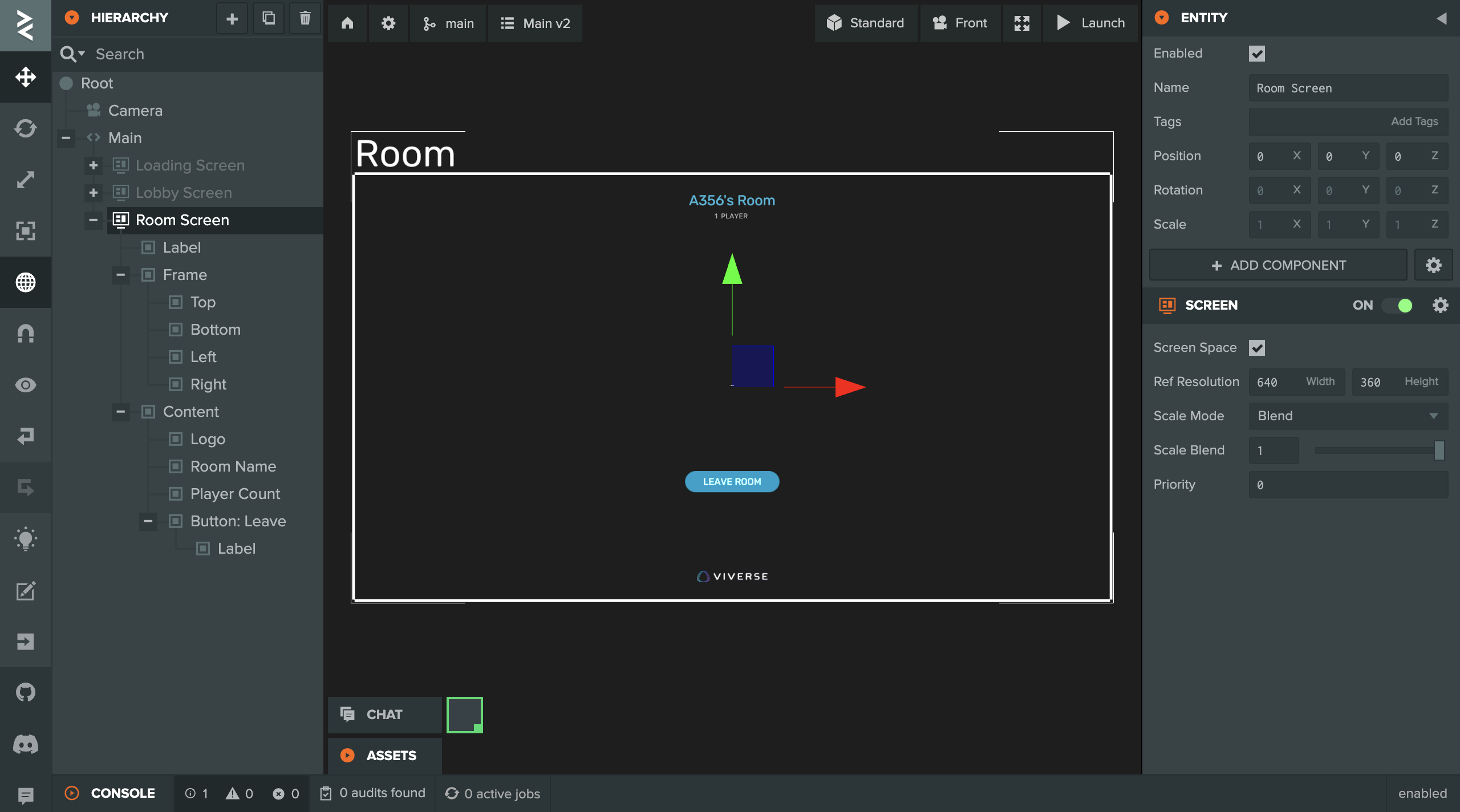

Room : display a list of currently connected Actors, along with Leave button
Loading : show spinner any time the user is neither in the Lobby nor in the Room

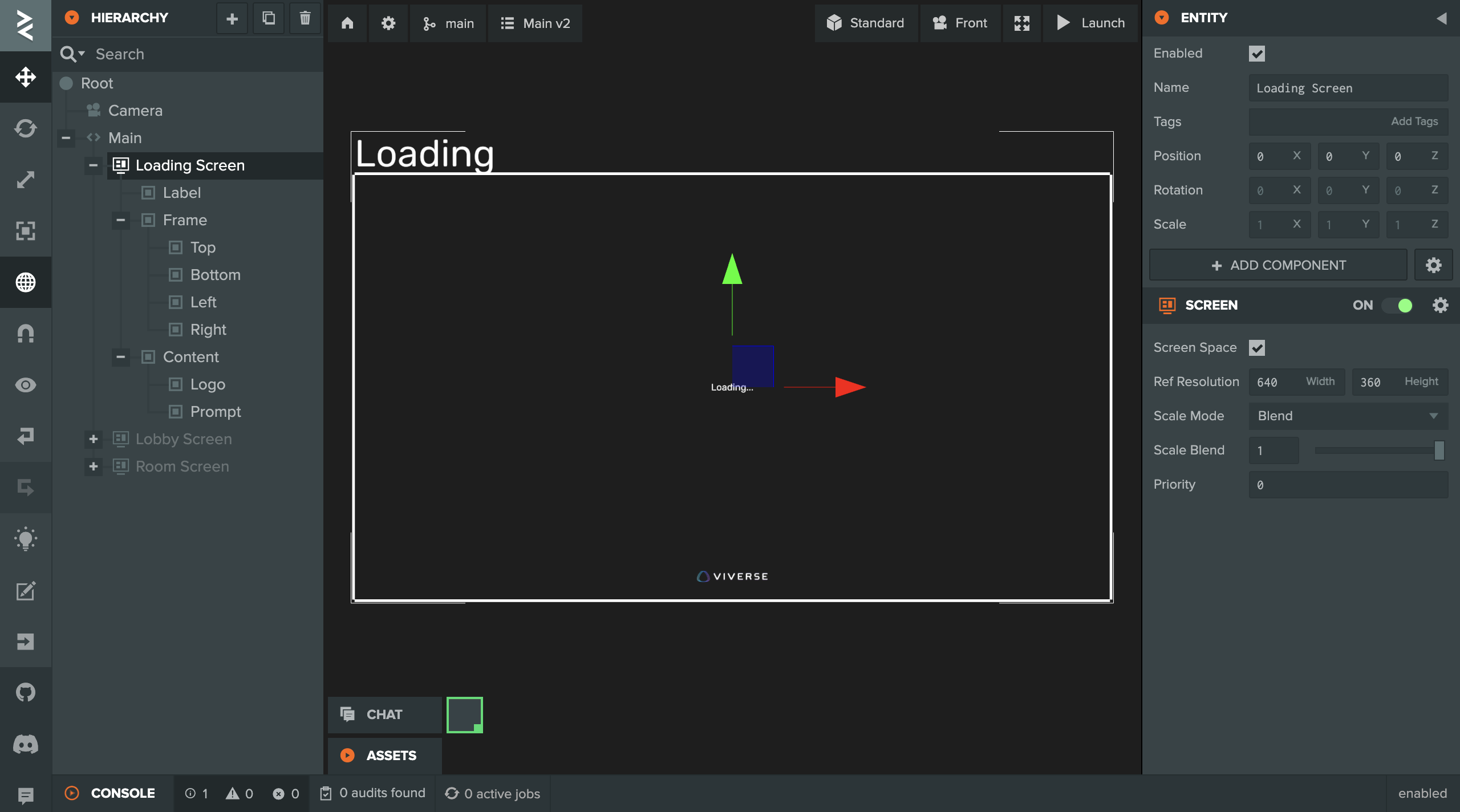

If you explore PlayCanvas Project created for this tutorial, you may notice that UI screens there have specific structure — they consist of Label text, Frame group and Content group, but only contents of the Content group are visible during testing. There is no magic here — once you look closely you'll see that both Label and Frame's contents are positioned outside of Screen's [0, 0, 1, 1] space, hence they never appear during rendering but still exist in 3D world. This is purely cosmetic touch — to make our Screens look more like Figma frames in the Editor, which may be quite welcoming for UX designers familiar with that tool.

2.2 Mapping UI screens to Application States

We have all required screens now, but our app is still displaying all them simultaneously. To make it show only one Screen depending on current State, we need to link our screens to Script Attributes, and create a simple showScreen method switching them on and off.

Let's put this idea into practice:

import { Script, Entity, guid } from 'playcanvas';
const { viverse } = globalThis;

/** @interface */
class Screens
{
    /** @title Loading @type {Entity} */ loading;
    /** @title Lobby @type {Entity} */  lobby;
    /** @title Room @type {Entity} */   room;
}

export class Main extends Script
{
    static scriptName = 'Main';

    /** @attribute @title Screens @type {Screens} */  screens;

    initialize () {...}

    //----------------------------------------------------------------------------//
    //                                 State Flow                                 //
    //----------------------------------------------------------------------------//

    async gotoInitState ()
    {
        this.showScreen ('loading');

        // ... rest of the code
        // [Initialization complete] -> Lobby State
    }

    async gotoLobbyState ()
    {
        this.showScreen ('lobby');

        // ... rest of the code
        // [On user action] -> Create State | Join State
    }

    async gotoCreateState ()
    {
        this.showScreen ('loading');

        // ... rest of the code
        // [Room creation complete] -> Room State
    }

    async gotoJoinState (id)
    {
        this.showScreen ('loading');

        // ... rest of the code
        // [Room joining complete] -> Room State
    }

    async gotoRoomState ()
    {
        this.showScreen ('room');

        // ... rest of the code
        // [On user action] -> Leave State
    }

    async gotoLeaveState ()
    {
        this.showScreen ('loading');

        // ... rest of the code
        // [Room leaving complete] -> Lobby State
    }

    //----------------------------------------------------------------------------//
    //                                   Utils                                    //
    //----------------------------------------------------------------------------//

    randomUsername () {...}

    showScreen (id)
    {
        this.screens.loading.enabled = (id === 'loading');
        this.screens.lobby.enabled = (id === 'lobby');
        this.screens.room.enabled = (id === 'room');
    }
}

Here is a breakdown of what's happening:

We're using ESM Script Attributes which rely on JSDoc tags / annotations to define custom attributes exposed to PlayCanvas Editor
To link UI screens to our script, we create an interface-like class Screens with loading, lobby and room fields and define our attribute with this custom complex type: /** @attribute @title Screens @type {Screens} */ screens
After that we implement a simple showScreen (id) method which enables only one Screen with provided id, while disabling any other screens
And finally we add a call to showScreen with corresponding id at the start of every State

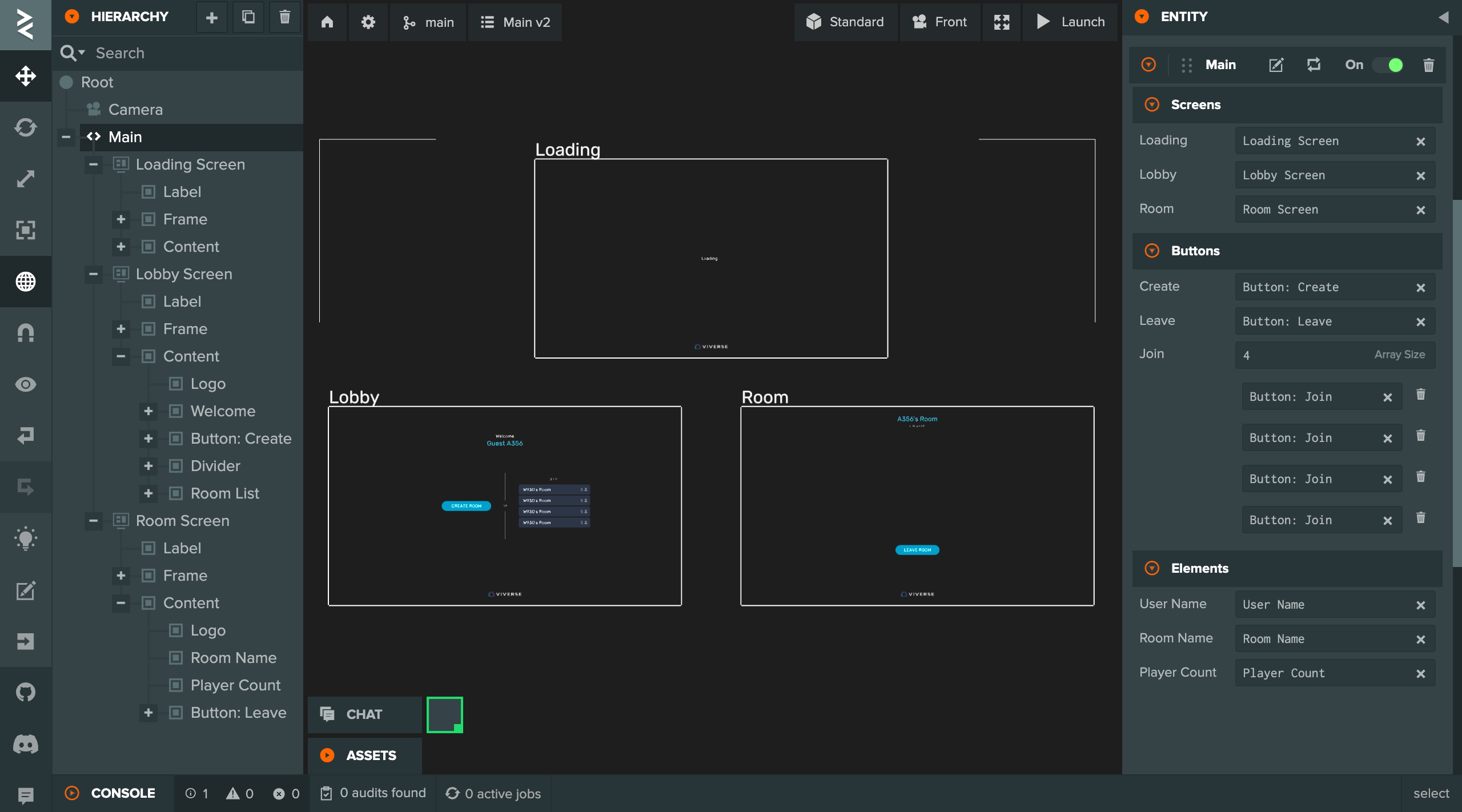

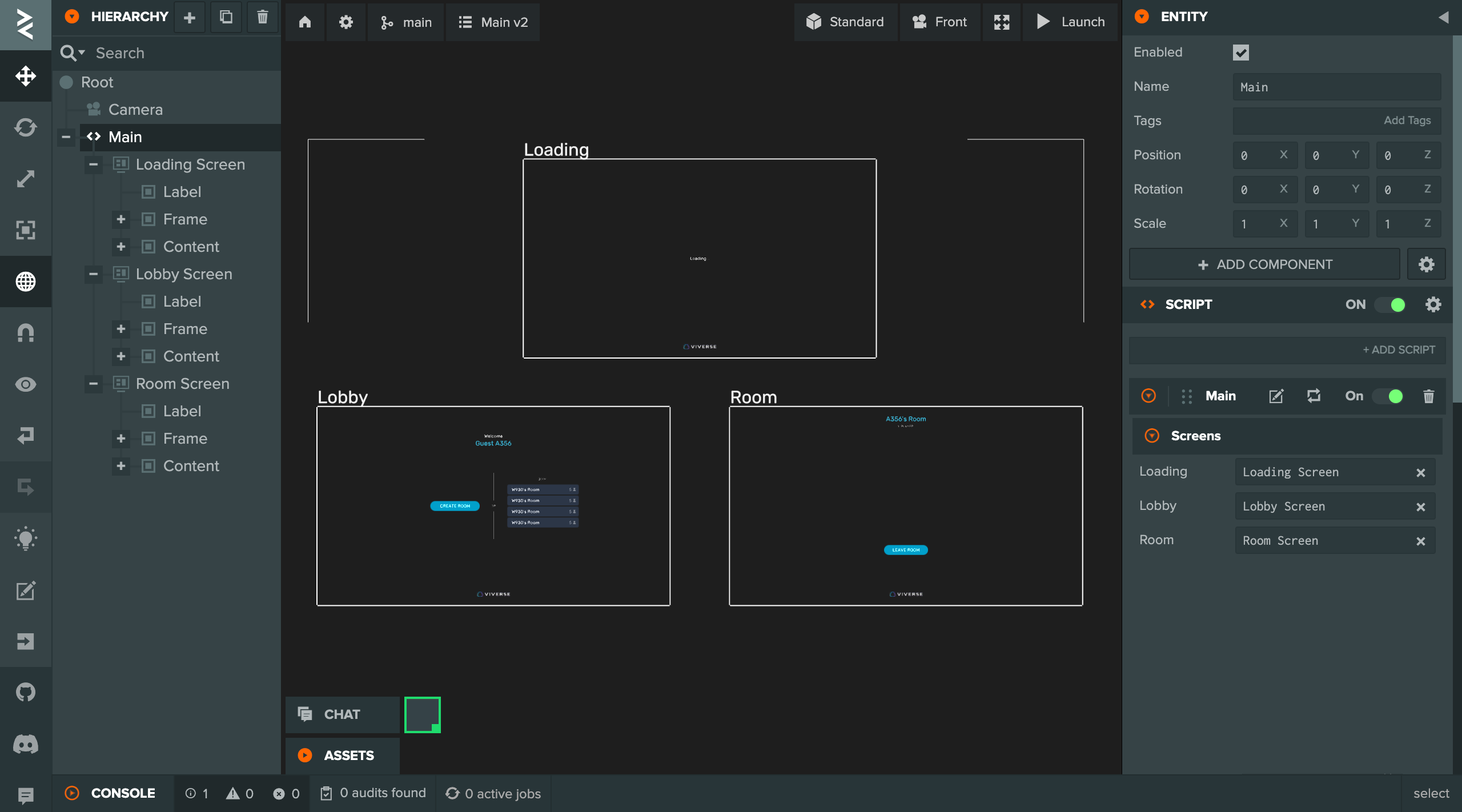

And that's it! Once we parse our updated script and drag and drop screen Entities into corresponding Attribute fields — our Screens should be mapped to States now.

You don't have to create complex interface-like attribute to link these 3 screens to your script. You could achieve similar results just by creating 3 separate attributes with Entity type instead. But our approach allows grouping Screens together in the Inspector, which is a nice convenience, especially when we decide to add new attributes later on.

2.3 Dynamic UI elements and Buttons

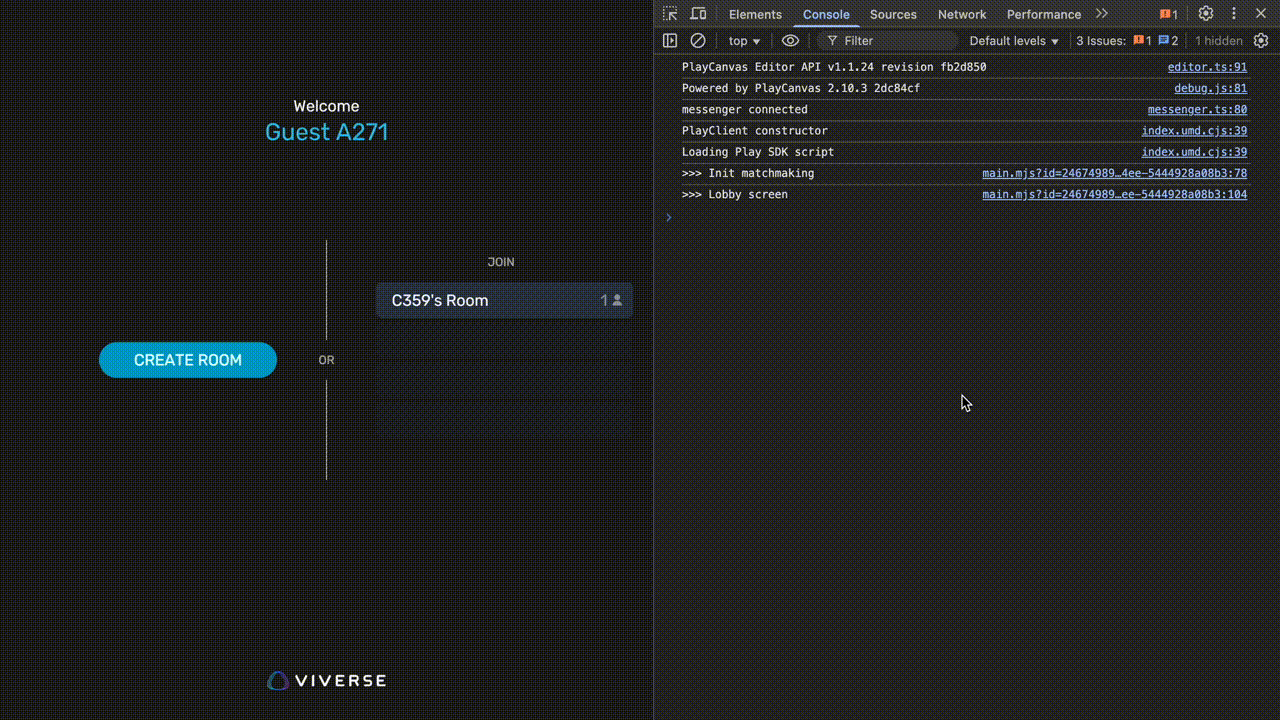

Our app can now display a dedicated Screen when entering particular State, but UI elements in those screens are still not reactive, neither buttons are clickable. To fix this, we'll need to link a few more entities to our script:

Lobby Screen: Username text, Create button and array of Join buttons
Room Screen: Room Name text, Player Count text and Leave button

If we group those into Buttons and Elements respectively — we can add two additional interface attributes with corresponding fields like demonstrated below:

// @ts-nocheck
import { Script, Entity, guid } from 'playcanvas';
const { viverse } = globalThis;

/** @interface */
class Screens
{
    /** @title Loading @type {Entity} */ loading;
    /** @title Lobby @type {Entity} */  lobby;
    /** @title Room @type {Entity} */   room;
}

/** @interface */
class Buttons
{
    /** @title Create @type {Entity} */ create;
    /** @title Leave @type {Entity} */  leave;
    /** @title Join @type {Entity[]} */ join;
}

/** @interface */
class Elements
{
    /** @title User Name @type {Entity} */  username;
    /** @title Room Name @type {Entity} */  roomname;
    /** @title Player Count @type {Entity} */ counter;
}

export class Main extends Script
{
    static scriptName = 'Main';

    /** @attribute @title Screens @type {Screens} */  screens;
    /** @attribute @title Buttons @type {Buttons} */  buttons;
    /** @attribute @title Elements @type {Elements} */  elements;

    initialize () {...}

    //----------------------------------------------------------------------------//
    //                                 State Flow                                 //
    //----------------------------------------------------------------------------//

    async gotoInitState ()
    {
        this.showScreen ('loading');

        // ... rest of the code
        // [Initialization complete] -> Lobby State
    }

    async gotoLobbyState ()
    {
        this.showScreen ('lobby');

        // Display current username in Lobby screen
        this.elements.username.element.text = `Guest ${this.username}`;

        // Wire Create button to switch app to Create State
        this.buttons.create.element.off ('click');
        this.buttons.create.element.on ('click', async () =>
        {
            await this.gotoCreateState ();
        });

        // Update Join buttons each time the Room List is updated
        // Wire each Join button to switch app to Join State with respective room id
        this.hideJoinButtons ();
        this.matchClient.on ('onRoomListUpdate', (rooms) =>
        {
            this.showJoinButtons (rooms, async (room) =>
            {
                await this.gotoJoinState (room.id);
            });
        });
    }

    async gotoCreateState ()
    {
        this.showScreen ('loading');

        // ... rest of the code
        // [Room creation complete] -> Room State
    }

    async gotoJoinState (id)
    {
        this.showScreen ('loading');

        // ... rest of the code
        // [Room joining complete] -> Room State
    }

    async gotoRoomState ()
    {
        this.showScreen ('room');

        // Display current room name in Room Screen
        this.elements.roomname.element.text = this.matchClient.currentRoom.name;

        // Update Player Count each time the Actor List is changed
        this.matchClient.on ('onRoomActorChange', (actors) =>
        {
            this.elements.counter.element.text = `${actors.length}  PLAYER`;
            this.elements.counter.element.text += actors.length > 1 ? 'S' : '';
        });

        // Wire Leave button to switch app to the Leave State
        this.buttons.leave.element.off ('click');
        this.buttons.leave.element.on ('click', async () =>
        {
            await this.gotoLeaveState ();
        });
    }

    async gotoLeaveState ()
    {
        this.showScreen ('loading');

        // ... rest of the code
        // [Room leaving complete] -> Lobby State
    }

    //----------------------------------------------------------------------------//
    //                                   Utils                                    //
    //----------------------------------------------------------------------------//

    randomUsername () {...}

    showScreen (id) {...}

    hideJoinButtons ()
    {
        for (let button of this.buttons.join)
            button.enabled = false;
    }

    showJoinButtons (rooms, callback)
    {
        this.hideJoinButtons ();

        for (let i = 0; i < rooms.length; i++)
        {
            let room = rooms[i];
            let button = this.buttons.join[i];

            // For simplicity our Lobby screen has only 4 Join Buttons instantiated
            // So only first 4 Rooms will be parsed and available for joining
            // The 5th and subsequent Rooms will be ignored

            if (button)
            {
                button.enabled = true;
                button.findByName ('Room Name').element.text = room.name;
                button.findByName ('Counter').element.text = room.actors.length;

                button.element.off ('click');
                button.element.on ('click', async () => await callback (room));
            }
        }
    }
}

We introduced some new complexity along the way, so let's unwrap it step by step:

Similar to Screens, we've grouped new UI functionality into Buttons and Elements, and linked respective entities to corresponding Script Attributes. Also note that we're using array of Entities for Join button since we're going to have multiple of them in our Lobby
In the Lobby State, we're stripping away Create Button's click handler before subscribing to it again in the next line. It may look confusing, but it's a necessary cleanup to make sure that buttons don't have dead event listeners attached to them during previous State execution. As alternative, attached listeners could be cleaned up before transitioning to the next State, so either way is fine as long as you do that cleanup. You can see the same pattern for all other buttons in this demo project
For Join buttons, we've created two utility methods: hideJoinButtons and showJoinButtons, to map a list of available rooms received from onRoomListUpdate event. So each time a new Room is created or destroyed in the context of our app — the array of Join buttons is updated respectively
And finally, in the Room State we subscribe to onRoomActorChange and update Player Count each time Actors List is changed. Don't forget that we also unsubscribe from these events when leaving Room and Lobby states, but this code snippet doesn't show that explicitly

Step 3: Final testing and further improvements

Hard to believe, but we're finally reaching the grand finale of this tutorial! Let's summarize what we've learned so far:

We've refactored our code from Part 01 and incorporated Async State Flow consisting of 6 states: Init -> Lobby -> Create / Join -> Room -> Leave -> Lobby
We've created 3 UI screens — Lobby, Room and Loading — and mapped them to respective application states
We've linked buttons and dynamic UI elements to Script Attributes and used them in our code to control application's State Flow and display realtime updates

Congratulations with finishing such a long read! Please feel free to fork our dedicated PlayCanvas Project or test it live using multiple tabs to create and join the Rooms.

PreviousPlayCanvas Matchmaking example: Part 01 - Basics NextStorage SDK

Last updated 9 days ago

Was this helpful?
